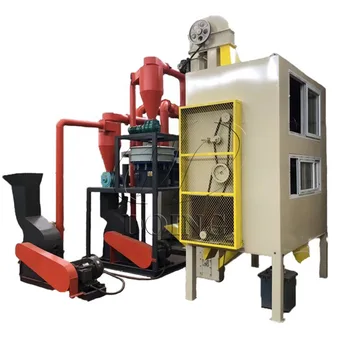

In this view, chemical recycling consists of pyrolysis process, depolymerization process by using supercritical fluids, hydrogenolytic degradation and gasification process. However there is an increasing interest in the end-of-life management of polymers present in WEEE mainly due to high quotas of recycling and recovery set by legislation which can only be fulfilled by including the plastic fraction in recycling and recovery approaches. Concern about environment prompts many governments to issue specific legislation on WEEE recycling: however with the notable exception of Europe, many countries seem to be slow in initiating and adopting WEEE regulations. Nonmetals reclaimed from waste PCBs are used to replace wood flour in the production of wood plastic (polyethylene) composites (Guo et al., 2010). So far recycling of waste PCBs is an important subject in terms of potential recovering of valuable products but several difficulties still exist due to environmental problems involved in end-of-life WEEE management. The benefits from Allegro PCB Designer can ease both team communication and any electronics production process. recycling pcb machine circuit crushing shredding hammer methods sayaka router alone seika reps representatives Crushing and separation are then key points for improving successful further treatments. 270 0 obj <> endobj Vacuum pyrolysis shorts organic vapour residence time in the reactor and lowers decomposition temperature, reducing the occurrence and intensity of secondary reactions. In effect brominates phenols likely form PBDD/PBDF through Ullmann condensation, contaminating pyrolysis products. The extraction of copper was mainly accomplished indirectly through oxidation by ferric ions generated from ferrous ion oxidation bacteria; a two-step process was necessary for bacterial growth and for obtaining an appropriate oxidation rate of ferrous ion. (Zheng et al., 2009a). Physical recycling is a promising recycling method without environmental pollution and with reasonable equipment invests, low energy cost and diversified potential applications of products. endstream endobj 271 0 obj <>>>/Lang(en-GB)/Metadata 110 0 R/OpenAction 272 0 R/Outlines 262 0 R/PageLabels 263 0 R/Pages 266 0 R/Type/Catalog/ViewerPreferences<>>> endobj 272 0 obj <> endobj 273 0 obj <>/ExtGState<>/Font<>/ProcSet[/PDF/Text/ImageC]/Properties<>/XObject<>>>/Rotate 0/Tabs/W/Thumb 97 0 R/TrimBox[0.0 0.0 595.276 792.0]/Type/Page>> endobj 274 0 obj <>stream Unless used correctly, hydrometallurgy can also be harmful to the environment. In treatment facilities components containing hazardous substances are only partly removed particularly in small WEEE. This interaction could promotes selective or non-selective in recovery of metals. Recycling a PCB recovers the precious metals and components, and turns the trash into treasure. Learn more about the LED driver board design process in our brief article. recycling pcb machine waste plant category pollution The effect of thermal hydrogenation was improved by using catalysts such as commercial hydrogenation DHC-8 and metal loaded activated carbon. Supercritical methanol and water have been tested for depolymerization of thermoset resins in PCBs for recycling purposes: the lower critical temperature and pressure of methanol (Tc : 240 C, Pc : 8.09 MPa) compared to those of water (Tc : 374 C, Pc: 22.1 MPa) allow milder conditions. Open Access is an initiative that aims to make scientific research freely available to all. Despite differences in the plants, general electronic scraps are treated together with other metal scraps by pyrometallurgical processes in the Noranda process at Quebec, Canada, at the Boliden Ltd. Rnnskr Smelter, Sweden (Association of Plastics Manufacturers in Europe [APME], 2000), at Umicore at Hoboken, Belgium (Hageluken, 2006). This implies that substantial quantities of hazardous substances are forwarded to subsequent mechanical crushing processes, causing significant dispersion of pollutants and possibly reduction of quantities of valuable recyclable materials (Salhofer & Tesar, 2011). Aside from using energy, pyrometallurgy also requires increased investment costs. Well show you how much capacitance you need for stability. Deng 2006) and phosphorous-nitrogen compounds (El Gouri et al., 2009). Most of the researches on biosorption mainly focused on gold, more attentions should be taken into biosorption of silver from solutions and on recovery of precious metals from multi-elemental solutions. Gasification converts organic materials into carbon monoxide and hydrogen (syngas) by reacting the raw material at high temperatures with a controlled amount of oxygen and/or steam: syngas is itself a fuel or can be used as intermediates for producing chemicals or even combusted in gas turbines for electric power production. Some techniques used in mineral processing could provide alternatives for recovery of metals from electronic waste. At 350C the oils of comminuted PCB (<1mm) treated with supercritical methanol included phenol with 58% purity, much higher than that produced by other conventional pyrolysis processes. Larger particles (> 0.178mm) are fibre-particulate bundles showing weakly bonded interface which make easier crazes initiation and particle detach from the polymer matrix. CAN bus hardware design is a communication protocol that has seen wide adoption in systems to unify sensors for safety purposes. The 300-700 C pyrolysis residues (7580%) can be easily liberated for metals recovery, and the glass-fibres can be re-compounded into new SMC and BMC structures as a filler replacement (Jie et al., 2008). Publishing on IntechOpen allows authors to earn citations and find new collaborators, meaning more people see your work not only from your own field of study, but from other related fields too. Pyrolysis of polymers leads to the formation of gases, oils, and chars which can be used as chemical feedstocks or fuels. Instead, workers use open fires to burn non-metal waste materials while attempting to retrieve precious metals. %%EOF Our team is growing all the time, so were always on the lookout for smart people who want to help us reshape the world of scientific publishing. A comparative environmental analysis of these two competing scenarios, intended for bromine recovery and electric power production, was carried out on recycling of the same mixed feeding PCB/green waste. Controlling e-waste must become a priority for the PCB industry. To date our community has made over 100 million downloads. Legislation pushes now toward a more comprehensive processes which includes recovering and recycling of the ceramic and organic fractions in substitution to not-ecoefficient disposal in landfill. The WEEE Directive requires the removal of PCBs of mobile phones generally, and of other devices if the surface of the PCBs is greater than 10 cm2: To be properly recovered and handled waste PCBs have to be removed from the waste stream and separately recycled. ransohoff waste Other costs cover waste air processing that prevents hazardous dust and particulates from entering the air. Hydrometallurgical processes utilize aqueous leaching agents consisting of nitric acid, sulfuric acid, and aqua regia to recover metals. In Europe the WEEE Directive (European Union 2003b) and its amendments as a first priority aims to prevent the generation of WEEE. Density-base separation of particles such as sink-float separation, jigging, upstream separation are also used to separate metal from non metal fractions in PCB scraps. Machine learning circuit simulation expands on existing models to provide accurate analysis in a fast and computationally lightweight package. Energy cost is reduced by combustion of plastics and other flammable materials in the feeding. Dehalogenation attempts have been carried out on model compounds, directly in the pyrolysis of PCB scraps or on refining the pyrolysis oil. The intention behind all PCB recycling processes is to not cause additional harm to the environment. Yet, all of uswhether were involved in PCB design or manufacturinghave a social responsibility to protect the environment and act as ecological stewards. As PhD students, we found it difficult to access the research we needed, so we decided to create a new Open Access publisher that levels the playing field for scientists across the world. Depending on the type of materials, hydrometallurgy breaks down into sub-processes that involve using solvents to separate contaminants from desired materials, the addition of ions to a precipitation agent that changes the material from a liquid state to a solid-state for separation, and loaded ion-exchange to extract captured metal ions. The thermal behaviour of epoxy resins, the most common polymer matrix in PCB, has been widely investigated as a basis for pyrolytic recycling. At second glance, I noticed a tire and some plastic bottles lying next to the creek. Sign Up For Our Monthly Newsletter, Power Spectral Density vs FFT: A Noise Analysis Perspective, An interpretation of Power Spectral Density vs FFT analysis in the context of noise in electronic circuits, The Seven Best Reasons for Being a Circuit Board (PCB) Designer. An oxidative sulfuric acid leach dissolves copper and part of the silver; an oxidative chloride leach dissolves palladium and copper; and cyanidation recovers the gold, silver, palladium and a small amount of the copper. Pyrolytic approach is attractive because it allows recovering of valuable products in gases, oils and residue. Recently studies on application of vacuum pyrolysis to PCBs have appeared in the literature. PCBs have a ratio consisting of 40% metals, 30% organic materials, and 30% ceramics. Longer reaction time and lower temperature was favorable for obtaining a higher oil yield (Xiu & Zhang, 2010). The solutions are then subjected to separation and purification procedures such as precipitation of impurities, solvent extraction, adsorption and ion-exchange to isolate and concentrate the metals of interest. TGA of epoxy-system based on Diglycidyl ether of bisphenol A or Diglycidyl ether of tetrabromobisphenol A (Br) crosslinked using different hardeners; DDS: Diaminodiphenylsulphone; DCD: Dicyandiamide; PEA: Polyethylene-polyamine, PHT: Phthalic anhydride. Home > Books > Integrated Waste Management - Volume II, Submitted: October 19th, 2010 Published: August 23rd, 2011, Total Chapter Downloads on intechopen.com. Furthermore pyrometallurgy results in a limited upgrading of the metal value and hydrometallurgical techniques and/or electrochemical processing are subsequently necessary to make refining. It was found that PP was an effective and selective hydrodehalogenatig agent because only HBr was recovered at 290350 C from a mixture of chlorinated and brominated phenols PP was effective as well in upgrading pyrolysis oil (Hornung et al. Due to the risk of ignition during soldering of the components on the platform or impact with electric current, the matrix is often a bromine-containing, fire retarded matrix likely to contain 15% of Br. Further particle size reduction to 5-10 mm can be carried out by means of cutting mills, centrifugal mills or rotating sample dividers equipped with a bottom sieve. Biosorbents are prepared from the naturally abundant and/or waste biomass of algae, fungi or bacteria. The pyrometallurgical process includes heating the PCB to a high temperature in order to recover the material. However there is a great variance in composition of PCB wastes coming from different appliances, from different manufacturers and of different age. However the oil resulted contaminated by polluting element and must be purged for further utilization. dismantling everychina So that reduction of the amount of brominated phenols in the pyrolysis oil in favour of less toxic substances is a way to add value to the whole PCB recycling process. Of course, printed circuit boards dont purposely float down creeks, on a mission to harm the environment. Typically PCBs contain about 5%weight of Fe, 27% of Cu, 2% of Al and 0.5% of Ni, 2000 ppm of Ag 80 ppm of Au; however there is no average scrap composition and the values given as typical averages actually only represent scraps of a certain age and manufacturer. If CaO is added in the feeding, inhibition of 90% PBDD/PBDF occurs with prevention of evolution of HCl and HBr that corrode the equipment (Lai et al., 2007). The remaining solid residue after copper removal was then leached with hydrochloric acid to remove tin and lead. hUkO:+4Imj:S%sAN-yo|J0 lh0q@8uxzH|G)ndyN8aa8V:5@Cx,j9>`4K(jgeabN1F"_Zb`N#D*r}3Od7|Hs`:}Ou*!G,Z8G*F#'L0 >c/8 %,pk|XeUARFH OrSavK +hpam@ju!Z&KlplKV{|mG1-&f. The thermal stability of the non metallic fraction of PCBs is very important for physical recycling methods which must be suitable for moulding processes. electronics open plant boards Recycling of Waste Paper Sludge in Cements: Charac Agroindustrial Wastes as Substrates for Microbial Are WEEE in Control? recycling pcb machine circuit copper plant waste wire boards doinggroup wastetireoil Metallic elements in waste PCBs were concentrated effectively up to 62% in the solid residue. Low-speed serial buses are the workhorses in digital systems for communication between ASICs. Firms have the tendency to send e-waste to Africa and China to use low-tech heating methods to remove impurities. As one of the plastic wastes to a certain extent, the non-metallic fraction of PCB can also be used with some effectiveness as a partial replacement of inorganic aggregates in concrete applications to decrease the dead weight of structures. A successful recycling approach of PCB should take into consideration the valorisation of the recycled items to compensate for recycling costs. A crushing stage is necessary for an easier further easier management of PCB waste. Biobased composites have been recently proposed as possible substitute of traditional resins used in PCBs (Zhan & Wool, 2010). In analogy, addition of PCB non-metallic fraction as reinforcing fillers in polypropylene (PP) has proven to be an effective way to enhance strength and rigidity: particles 0.178-0.104 mm, modified by a silane coupling agent, could be successfully added in PP composites as a substitute of traditional fillers. While extreme heat changes metals both chemically and physically, the process also uses energy, and can release toxic dust and gas containing dioxin and lead. The majority of reinforcements in PCBs are woven glass fibres embedded in the thermoset matrix. Wastes from electric and electronic equipments (WEEE) show an increasing upward tendency: a recent annual estimation for WEEE was almost 6.5 million tonnes, and it has been predicted that by 2015 the figure could be as high as 12 million tonnes (Barba-Gutirrez et al., 2008).A significant proportion of WEEE is constituted by PCBs which represent about 8% by weight of WEEE collected from small appliances (Waste & Resources Action Programme Project, WRAP 2009) and 3% of the mass of global WEEE (Dalrymple et al., 2007). 1) (Luda & Balabanovich, 2011). Learn about the factors that influence aluminum capacitor lifetime in this article. Liquid products obtained from pyrolysis of general WEEE, PCBs and their mixtures were upgraded by thermal and catalytic hydrogenation. pcb waste direct automatic factory recycling larger The size of the PCB particles effects as well on the decomposition temperature: degradation is postponed when particles are larger than 1 cm2 due to heat transfer limitation (Quan et al., 2009). The Waste Electrical and Electronic Equipment Directive (WEEE Directive) and the Restriction of Hazardous Substances Directive (RoHS) require different recycling methods for those components. (Veit at al., 2005; Cui & Forssberg, 2003). Percentage of the bromine resulting in the various fractions from pyrolysis of 2,4- dibromophenol (DBP) with low density polyethylenes (LDPE), High density polyethylene (HDPE), polystyrene (PS), polybutadiene (PBD) Polyamides (PA-6, PA-6,6), polyacrylonitrile ( PAN). However, these approaches still suffer for drawbacks and the market has not selected a standard replacement for bromine-based flame retardants yet. Printed circuit boards (PCBs) can be found in any piece of electrical or electronic equipment: nearly all electronic items, including calculators and remote control units, contain large circuit boards; an increasing number of white goods, as washing machines contains circuit boards for example in electronic timers. 2003, Balabanovich et al., 2005). Connecting the electrodes to a power source causes the metals to deposit on the cathodeor negative electrode. Pyrolysis degrades the organic part of the PBC wastes, making the process of separating the organic, metallic and glass fibre fractions of PCBs much easier and recycling of each fraction more viable. Hydrodehalogenation with hydrogen-donating media is a promising option for the destruction of halogen-containing aromatics in the pyrolysis oil, converting them into non-halogenated aromatics and valuable hydrogen halide. hb```b``d`e`` B@16 Ba2lq``;3YYOsL,UNhLpP wP)j8[jGrl3(Ho9&ezq:xgDxoaR{)G ";L fmVl`y A-e Biotechnology is one of the most promising technologies in metallurgical processing. The upgraded degradation products were separated in residue, liquids and gases; liquids with high amount of aromatics were obtained but most of hazardous toxic compounds were eliminated after hydrogenation by converting them into gaseous HBr (Vasile et al., 2007). The RoHS Directive (European Union 2003a) names six substances of immediate concern: lead, mercury, cadmium, hexavalent chromium, polybrominated diphenyl ethers (Penta-BDE and Octa-BDE) and polybrominated biphenyls. In both developed and developing nations, the landfilling of WEEE is still a concern and accumulation of unwanted electrical and electronic products is still common. Contamination of oil by harmful compounds remains a severe issue with a strong impact on material and thermal recycling: bromine-containing phenols are potentially hazardous compounds emitted during heating of polymers flame retarded with TBBA based fire retardants. Therefore, recycling processes recover approximately 99% of copper, copper-beryllium alloys, beryllium oxide, aluminum, tin, gold, silver, platinum, palladium, and lead from a PCB board. The PCBs can then be sent to a facility for further dismantling for reuse or reclamation of electric components. From pyrolysis of equimolecular mixture of various polymers with 2,4- dibromophenol (DBP) bromine was recovered as valuable HBr in gases, toxic brominated compounds in oil or confined in the charred residue. The non metallic items so produced are used for trays, sewer grates, kitchen utensils, electronic switches etc. Watch out for these pitfalls in open-source hardware. pcb machine recycling circuit electronic components PCBs contain metals, polymers, ceramics and are manufactured by sophisticated technologies. Follow these guidelines for creating an FPGA PCB layout. Shape separation by tilted plate and sieves is the most basic method that has been used in recycling industry. The combination of the removal and recovery of the organic fraction of PCBs and the removal of the solder aid the separation of the metal components. To ensure the surface smoothness, the size of non metallic fractions used was less than 0.15mm. dismantling component
